Step 1: Envelope fundamentals.

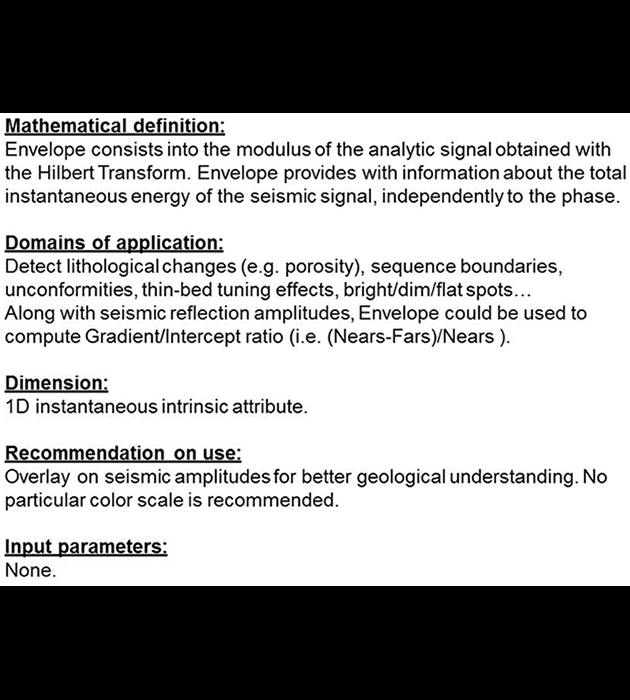

The opposite panel gives an overview of the attribute characteristics.
-
Step 2: Before attribute computation - Reflected amplitudes.

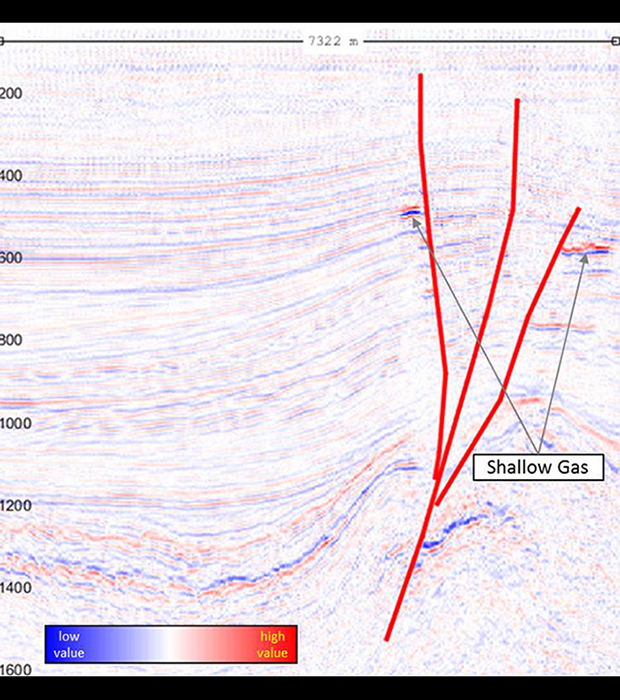

The seismic section is the inline 690 extracted from post-stack time migrated 3D seismic data (Netherlands, F3 Block). Faults have been picked (in red) to ease understanding of layering geometry. Shallow gas accumulations are presented in a faulted 3-way closures context.
-
Step 3: With the Envelope attribute.
The presence of gas can be seen on the seismic section by seismic anomalies defined as flat spots which are highligted by the Envelope seismic attribute.
Acknowledgements:
Post-stack time migrated 3D seismic data (Netherlands, F3 Block) is provided by dGB Earth Sciences through OpendTect share seismic data repository. Netherlands Government is kindly acknowledged for making data public if dedicated to academic purposes.
