Attributes > Instantaneous Phase

Step 1/3

Instantaneous Phase fundamentals

Step 2/3

Before attribute computation - Reflected amplitudes

Step 3/3

With the Instantaneous Phase attribute

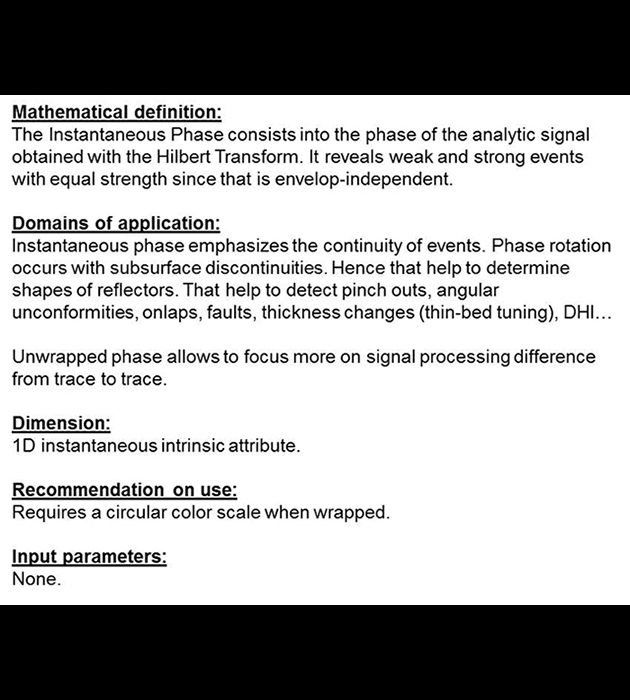

Step 1: Instantaneous Phase fundamentals.
The opposite panel gives an overview of the attribute characteristics.

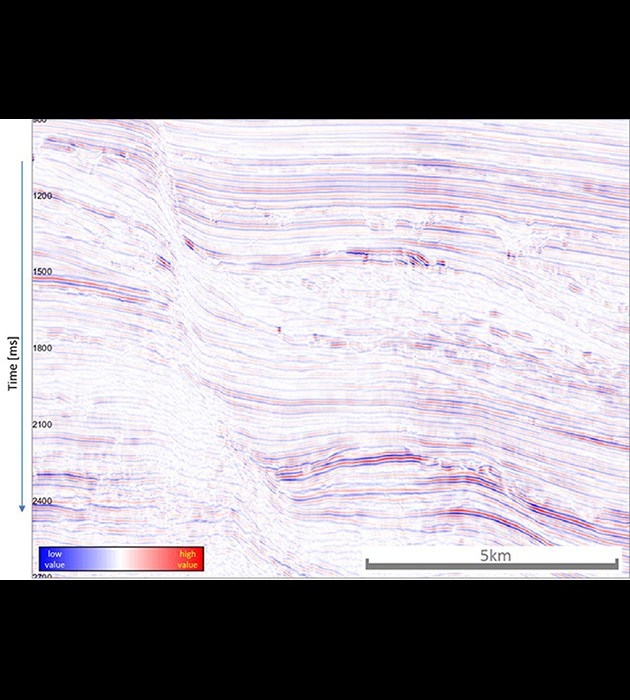

Step 2: Before attribute computation - Reflected amplitudes.
The seismic section is the inline 2196 extracted from preSTM 3D seismic data (New Zealand, Parihaka Block). To deal with concrete matters, a section with depositional channels, prograding systems and onlapping occurrence has been chosen.

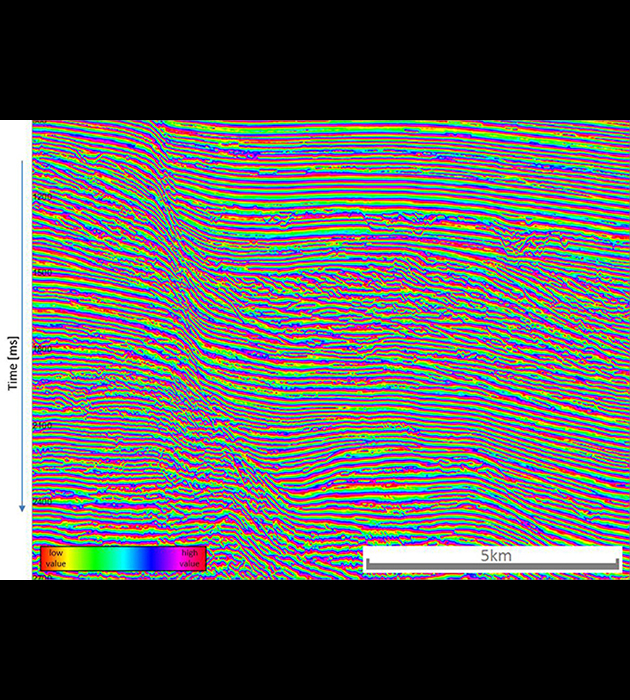

Step 3: With the Instantaneous Phase attribute.
Visibility of channels filling, prograding systems and onlaps is obviously enhanced with use of the Instantaneous Phase. Same inline is displayed.

Acknowledgements:
The example is made of anisotropic Kirchhoff pre-stack time migrated 3D seismic data (New Zealand, Parihaka Block) provided by New Zealand Petroleum and Minerals (NZPM). NZPM and New Zealand Government are kindly acknowledged for making data public if dedicated to academic purposes.
