Near Surface Geophysics > Flows

Step 1/2

Comparison between BHTV and VSP flow index

Step 2/2

Comparison Noise/Signal detector and PLT flow

Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.

Figures gives the comparison between BHTV log, VSP flow index, noise/Signal detector (acoustic logging) and PLT flow at well M11. We clearly detect a karstic body between 85 and 90 m with a flow.

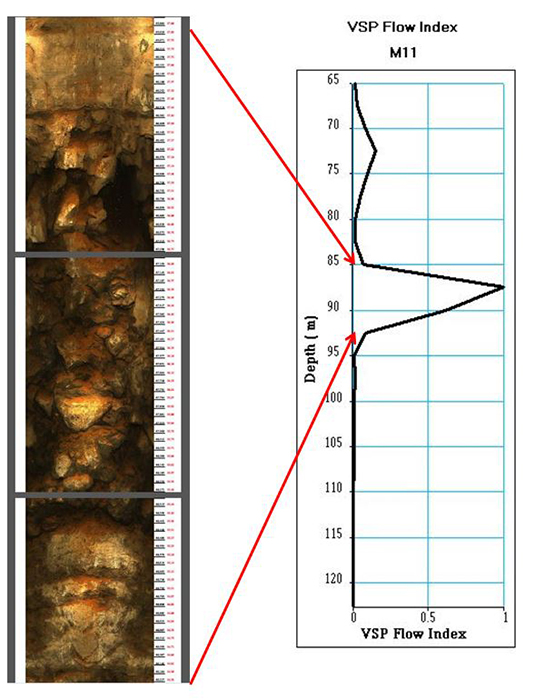

Step 1: Comparison between BHTV and VSP flow index.

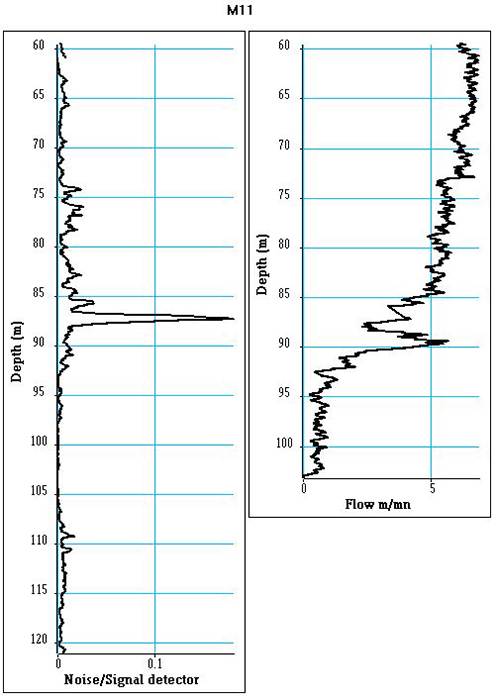

Step 2: Comparison Noise/Signal detector and PLT flow.
